Steel channels are among the most versatile structural components used in construction, manufacturing, transportation, and fabrication. One of the most popular lightweight structural channels is the C4 × 5.4 channel, valued for its excellent strength-to-weight ratio and adaptability across a wide range of projects. Whether you're building equipment frames, structural supports, trailers, or industrial platforms, understanding the C4 × 5.4 channel dimensions helps ensure the right material is selected for safety, performance, and cost-efficiency.
At Bobco Metals, we provide high-quality steel channels in various sizes to meet the needs of contractors, fabricators, engineers, and DIY builders. This guide explains everything you need to know about C4 × 5.4 channel dimensions, specifications, properties, uses, and buying considerations.
What Is a C4 × 5.4 Channel?

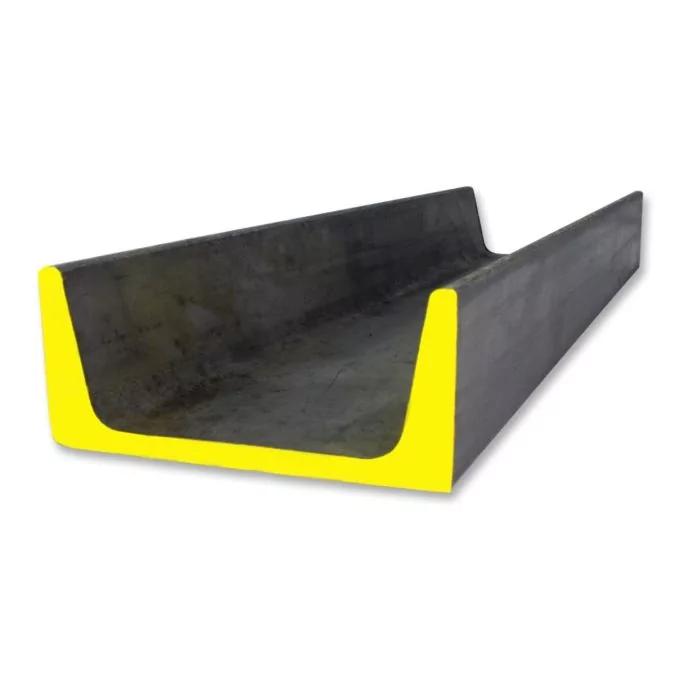

A C4 × 5.4 steel channel is a standard American structural channel (often called a C-channel) with a nominal depth of 4 inches and a weight of 5.4 pounds per foot. The "C" refers to its cross-sectional shape, while the numbers indicate its size and weight.
These channels are manufactured according to industry standards and are commonly produced from hot-rolled carbon steel. Their unique shape provides excellent structural support while remaining relatively lightweight, making them suitable for numerous structural and fabrication applications.
Standard C4 × 5.4 Channel Dimensions
Although slight variations can occur depending on manufacturing tolerances, the standard dimensions generally include:
Property | Measurement |
|---|---|
Nominal Depth | 4.00 inches |
Weight | 5.4 lb/ft |
Flange Width | Approximately 1.58 inches |
Web Thickness | Approximately 0.18 inches |
Flange Thickness | Approximately 0.26 inches |
Cross Sectional Area | Approximately 1.59 sq. in. |
These dimensions provide an excellent balance between structural strength and manageable weight, making the C4 × 5.4 channel one of the most commonly specified light structural channels.
Understanding the Naming System
Many people wonder what C4 × 5.4 actually means.
The designation can be broken into two parts:
C = American Standard Channel
4 = Approximate depth in inches
5.4 = Weight in pounds per foot
For example, a 20-foot length weighs approximately:
5.4 × 20 = 108 pounds
Knowing the weight helps estimate transportation requirements and installation costs.
Material Specifications
Most C4 × 5.4 channels are manufactured using:
ASTM A36 Steel
ASTM A572 Grade 50 (for higher strength)
ASTM A992 (in some structural applications)
These materials provide:
Excellent weldability
Good machinability
High structural strength
Reliable durability
Long service life
Mechanical Properties
The C4 × 5.4 channel offers impressive structural characteristics despite its relatively light weight.
Typical properties include:
High tensile strength
Good yield strength
Excellent resistance to bending
Reliable load-bearing capacity
Strong performance under compression
Because of these characteristics, engineers frequently specify this channel for light and medium-duty structural projects.
Common Applications
The versatility of the C4 × 5.4 channel makes it useful across many industries.
Structural Frames
The channel provides dependable support for:
Steel buildings
Equipment structures
Industrial platforms
Utility buildings
Trailer Construction
Manufacturers often use C4 × 5.4 channels for:
Trailer frames
Utility trailers
Equipment haulers
Reinforcement members
Its combination of strength and low weight makes it ideal for transportation applications.
Industrial Equipment
The channel is frequently used for:
Machinery bases
Equipment supports
Conveyor systems
Manufacturing fixtures
Agricultural Equipment
Farm equipment manufacturers utilize these channels for:
Tractor attachments
Livestock equipment
Irrigation systems
Utility racks
Commercial Construction
Builders commonly install C4 × 5.4 channels in:
Stair supports
Roof framing
Wall reinforcement
Mechanical supports
Advantages of C4 × 5.4 Channels
Choosing this structural member provides several benefits.
Lightweight Yet Strong
At only 5.4 pounds per foot, installation is easier while still maintaining excellent strength.
Easy Fabrication
The material can be:
Cut
Drilled
Welded
Painted
Bolted
without excessive difficulty.
Cost Effective
Because of its moderate weight, it often provides a more economical solution than larger structural members.
Versatile
Its shape allows installation in both horizontal and vertical orientations.
Long Service Life
When properly coated or galvanized, steel channels can last for decades with minimal maintenance.
Hot Rolled vs Galvanized C4 × 5.4 Channels
Hot Rolled
Advantages include:
Lower cost
Excellent weldability
Strong structural performance
Easy machining
Ideal for indoor applications.
Galvanized
Advantages include:
Superior corrosion resistance
Outdoor durability
Lower maintenance
Longer lifespan in harsh environments
Best for exterior structures and marine environments.
How to Choose the Right Channel
When selecting a C4 × 5.4 channel, consider several factors.
Load Requirements
Always determine:
Dead loads
Live loads
Dynamic loads
Safety factors
Consult a structural engineer for critical applications.
Environment
Outdoor environments may require galvanized channels for corrosion protection.
Indoor applications often use standard hot-rolled steel.
Fabrication Needs
If welding is required, confirm the selected material grade supports your fabrication process.
Project Budget
Balance:
Material cost
Transportation
Installation
Maintenance
to maximize value.
Installation Tips
For best performance:
Store steel off the ground.
Keep material dry before installation.
Use appropriate lifting equipment.
Follow engineering drawings.
Verify dimensions before fabrication.
Use proper welding procedures.
Inspect all fasteners after installation.
Proper installation significantly improves structural performance.
Maintenance Recommendations
Steel channels require relatively little maintenance.
Recommended practices include:
Annual inspections
Remove surface rust if present
Repaint damaged coatings
Check welded joints
Inspect bolts for tightness
Replace severely damaged members
Galvanized channels generally require even less maintenance.
Why Engineers Prefer C4 × 5.4 Channels
Professionals frequently specify this channel because it offers:
Reliable structural performance
Standardized dimensions
Wide availability
Easy compatibility with other steel members
Excellent fabrication characteristics
These qualities simplify both design and construction.
Buying C4 × 5.4 Channels
Before purchasing, verify:
Material grade
Required length
Surface finish
Straightness
Certification requirements
Quantity needed
Working with a trusted supplier ensures consistent quality and accurate specifications.
Why Choose Bobco Metals?
At Bobco Metals, we supply premium-quality structural steel products for residential, commercial, and industrial projects. Our extensive inventory includes C-channels, angle iron, beams, tubing, sheet metal, pipes, and more.
Customers choose Bobco Metals because we offer:
High-quality structural steel
Competitive pricing
Large inventory
Fast order fulfillment
Knowledgeable customer support
Reliable service for contractors and fabricators
Whether you need a single length or a bulk order, our team can help you select the right steel products for your application.
Frequently Asked Questions
What does C4 × 5.4 mean?
It indicates a standard American steel channel with an approximate depth of 4 inches that weighs 5.4 pounds per foot.
Is the C4 × 5.4 channel suitable for structural applications?
Yes. It is commonly used in structural framing, equipment supports, trailers, and industrial fabrication when properly engineered.
Can the channel be welded?
Yes. Most hot-rolled carbon steel C4 × 5.4 channels offer excellent weldability using standard welding methods.
Is galvanized C4 × 5.4 available?
Yes. Galvanized versions provide enhanced corrosion resistance and are recommended for outdoor or moisture-prone environments.
Where can I buy quality C4 × 5.4 channels?
Bobco Metals offers high-quality C4 × 5.4 channels along with a wide selection of structural steel products for construction, fabrication, and industrial applications.
Conclusion
Understanding C4 × 5.4 channel dimensions is essential when selecting structural steel for your next project. With its 4-inch nominal depth, lightweight design, and dependable strength, this channel is an excellent choice for construction, equipment fabrication, trailers, industrial supports, and many other applications.
By choosing quality materials from Bobco Metals, you can ensure dependable performance, accurate dimensions, and long-lasting durability. Whether you're a contractor, fabricator, engineer, or DIY builder, the C4 × 5.4 channel delivers the versatility and structural reliability needed to complete projects with confidence.
